Features:
-
Nozzle discharge coefficient 0,998
-
All dredges and waterjets can be equipped with diver operated controls
-
Adjustable handles, intake and discharge length
-
Low mass, improved manipulation
-
Reduced support crew size
-
Low fuel consumption, small deck footprint
-
Low initial and operational costs
We offer a range of high efficient water dredges, airlifts, and waterjets.
Water/air nozzles are designed and machined to provide the best system efficiency.
Dredges
& Waterjets
Gallery
Water nozzle
WD 1
WD 2
WDS 2
Air nozzle
Airlift
ADS
Dredge
WD1
WD2
water dredge
WDS
water dredge system
Airlift
dredge
ADS
airlift dredge system

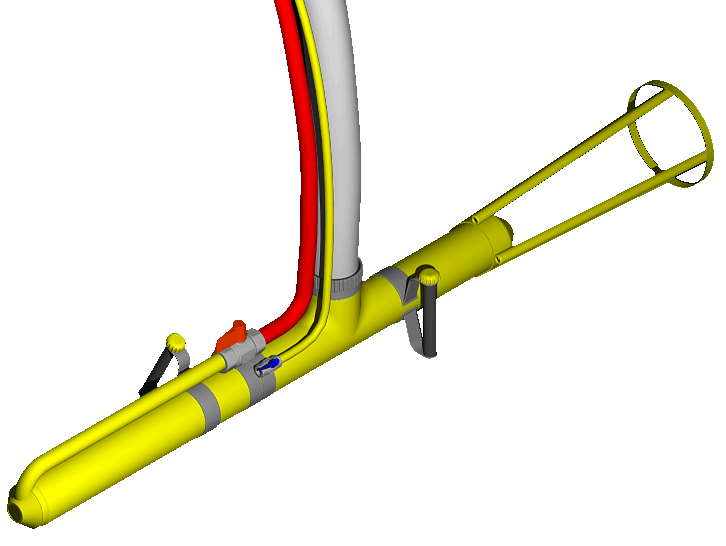

Water dredge
Diver operated water dredge
Lightweight, water dredge, capable of high excavation rate in most demanding sediments.
Ease of transport and quick setup makes it ideal for interventions and small scale jobs.
Removal capacity up to 40 m³ (52 yd³) / hour*
All models:
Interchangeable, high-performance water nozzle
(0,998 discharge coefficient).
Interchangeable water nozzle provides the best overall dredge performance when different water pumps are used.
Optional:
Diver operated water pump throttle control.
Waterjet add on.
* dependent on dredge handling and sediment type,
based on 10% solids
Standard features on all models
For more details download
Water pump
Water pumps
Pump throttle remotely, diver operated
(these are not trash pumps)
To power the WD range of dredges we selected water pumps with the best power efficiency available on the market.
Power range from 3,5 to 11,7 hp to facilitate different dredge diameter and job requirements.
All water pumps are fitted with remote, diver operated pump throttle control, and large capacity fuel tank (10 hours operation @ full throttle).
There is no need for an assistant to control and refuel the water pump.
Other water pumps at request.
If you want to use your pump we will customize a water nozzle for best system performance.
As an option, we can supply pump float. It can support a pump and one person. Pump float save deck space eliminates vibration and reduce noise on-board vessel. It enables several pumps to be deployed from a small boat. Floats are easily pulled and repositioned by the diver. If dredging is at safe distance from the shoreline, pump float eliminates the need for boat assistance.
4" suction / discharge • Flow 1550 LPM / 409 GPM • 4 bar / 58 PSI • Kama KM186F 10,5 HP Diesel
2" Suction/Discharge • Flow 598 LPM / 158 GPM • 3,5 bar / 50 PSI • Honda GX130, 3.5 HP
3" Suction/Discharge • Flow 549 LPM / 145 GPM • 9,8 bar / 142 PSI • Honda GX340, 10.7 HP
4" suction / discharge • Flow 1550 LPM / 409 GPM • 4 bar / 58 PSI • Kama KM186F 10,5 HP Diesel
Pump remote
throttle comtrol
enable diver to remotely set pump throttle at full or idle position
enable diver to remotely control water pump throttle
Standard
Optional

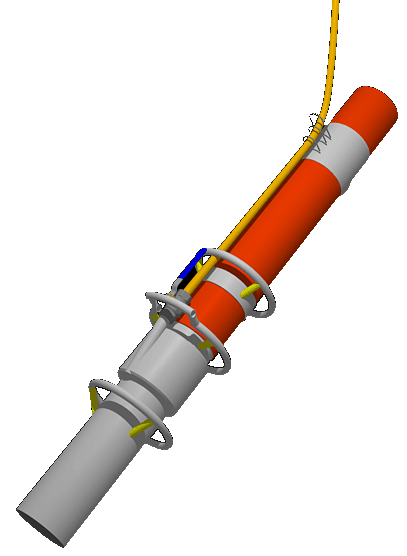

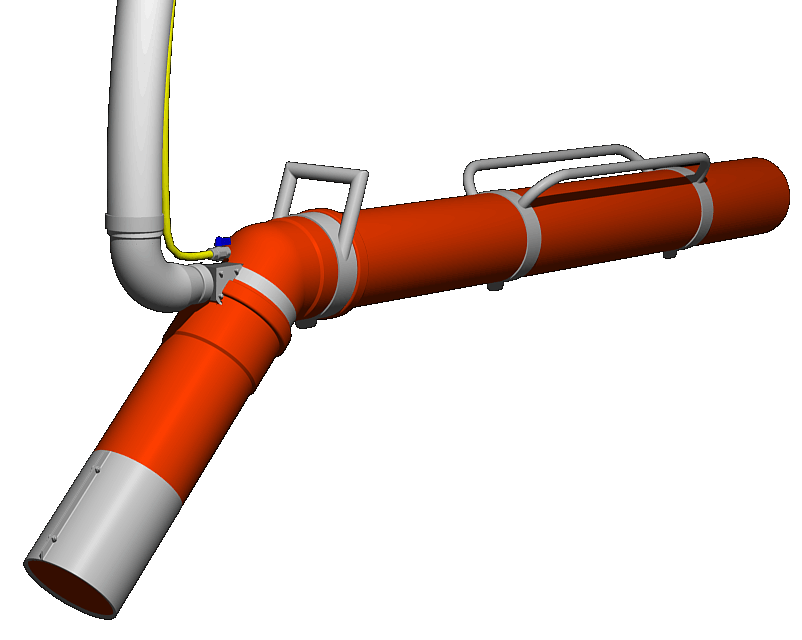

Airlift
Diver operated airlift dredge
Lightweight, airlift dredge, capable of high excavation rate in most demanding sediments.
Ease of transport and quick setup makes it ideal for interventions and small to medium scale jobs.
Removal capacity up to 70+ m³ (91 yd³) / hour*
All models:
Multiple, high-performance air injection nozzles (0,99 discharge coefficient)
Highly efficient in shallow water (2-3 m / 6-10 ft)
Waterjet addon / remote water pump control - optional.
* dependent on dredge handling and sediment type,
based on 10% solids
mi
Airlift anchor
Weight: 60 kg / 132 lbs
inflatable to neutral buoyancy for easy reposition by diver
Use air from the dredge air supply
Weight: 40 kg / 88 lbs inflatable to neutral buoyancy for easy re position by diver Use air from dredge air supply
For more details download
Dredge systems
Water dredge system
WDS 1 / WDS 2
Diver / ROV operated water dredge systems
Heavy-duty, high capacity water dredge.
Removal capacity up to 110 m³ (144 yd³) / hour*
Diver, remotely operated water pump throttle and backflush - optional on both models.
Hydraulically powered water pump and fixed, water nozzles (0,98 discharge coefficient).
WDS 2 dredge is fitted with a waterjet water pump.
* dependent on dredge handling and sediment type,
based on 10% solids
interchangeable nozzles and water pump
interchangeable nozzles and water pump
WDS c
Diver operated water dredge system
Heavy-duty, high capacity water dredge.
Removal capacity up to 110+ m³ (144+yd³)/ hour*
Diver, remotely operated water pump throttle and backflush - optional.
Interchangeable water nozzles (0,98 discharge coefficient) and interchangeable water pump, enable the user to fully customize dredge performance - optional.
WDS c can be powered by surface water pump
Waterjet attachment - optional.
* dependent on dredge handling and sediment type,
based on 10% solids
easier and faster dredging
Optional
Swivel intake
For more details download

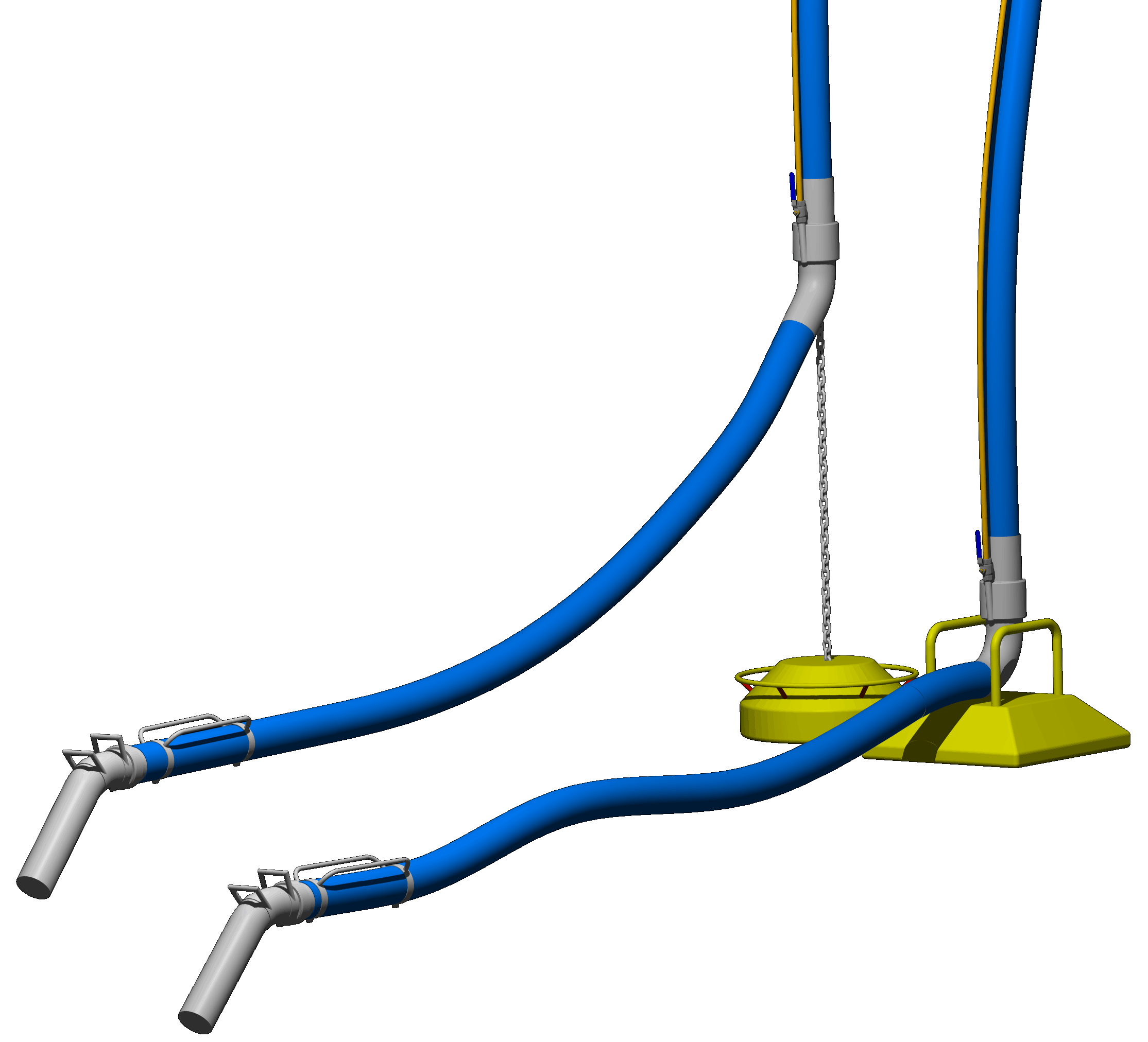

Airlift dredge system
ADS 1 / ADS 2
Diver operated airlift dredge systems
Heavy-duty, high capacity airlift dredge.
Removal capacity up to 140+ m³ (183+ yd³) / hour*
All models:
Multiple high-performance air nozzles
(0,99 discharge coefficient)
Improved efficiency in shallow water (2-3 m / 6-10 ft)
Diver remote operated air supply valve - standard
Automatic safety air shut off valve - optional.
Waterjet with remote water pump control - optional.
* dependent on dredge handling and sediment type,
based on 10% solids
ADS 1 enables dredging up to 50 m (164 ft)water depth
ADS 2 enables dredging in shallow water 0,5 m (2 ft)
Both models enable dredging under overhead obstacles
Safety air shut off system prevents accidental
airlift refloating, if a diver does not manually shut off the air supply when a blockage occurs.
easier and faster dredging
Weight: 60 / 100 /150 kg // 132 / 220 / 330 lbs -optional inflatable to neutral buoyancy for easy re position by diver Use air from dredge air supply
Optional
Swivel intake
Optional
Airlift anchor
For more details download

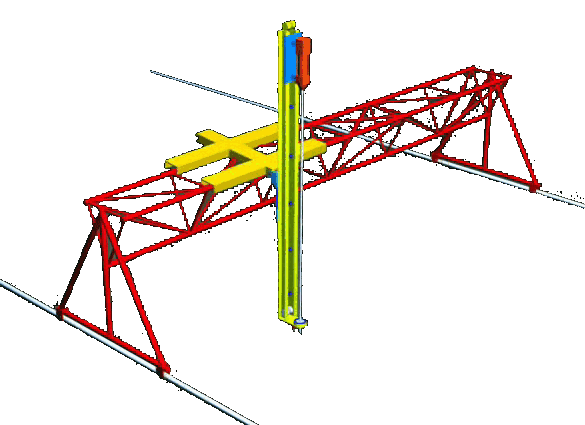

Airlift dredge module
Air chamber and waterjet modules are designed to enable the user to quickly assemble highly efficient airlift using standard tubing and flanges. Suitable for crane suspended airlift dredges. Sturdy construction to withstand rigors of the job.

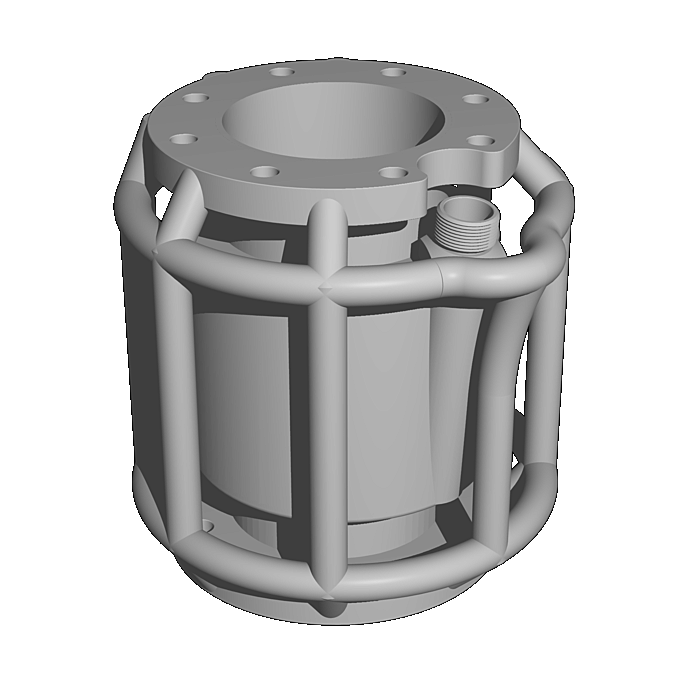

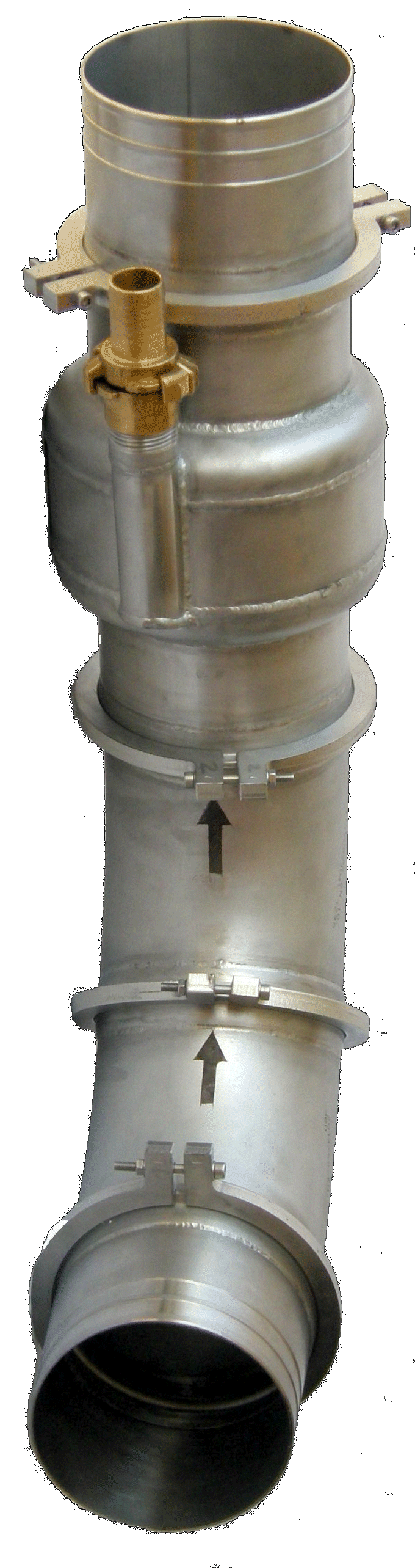

Airlift air chamber
ACh
The heavy-duty air injection chamber increases airlift dredge excavation capacity.

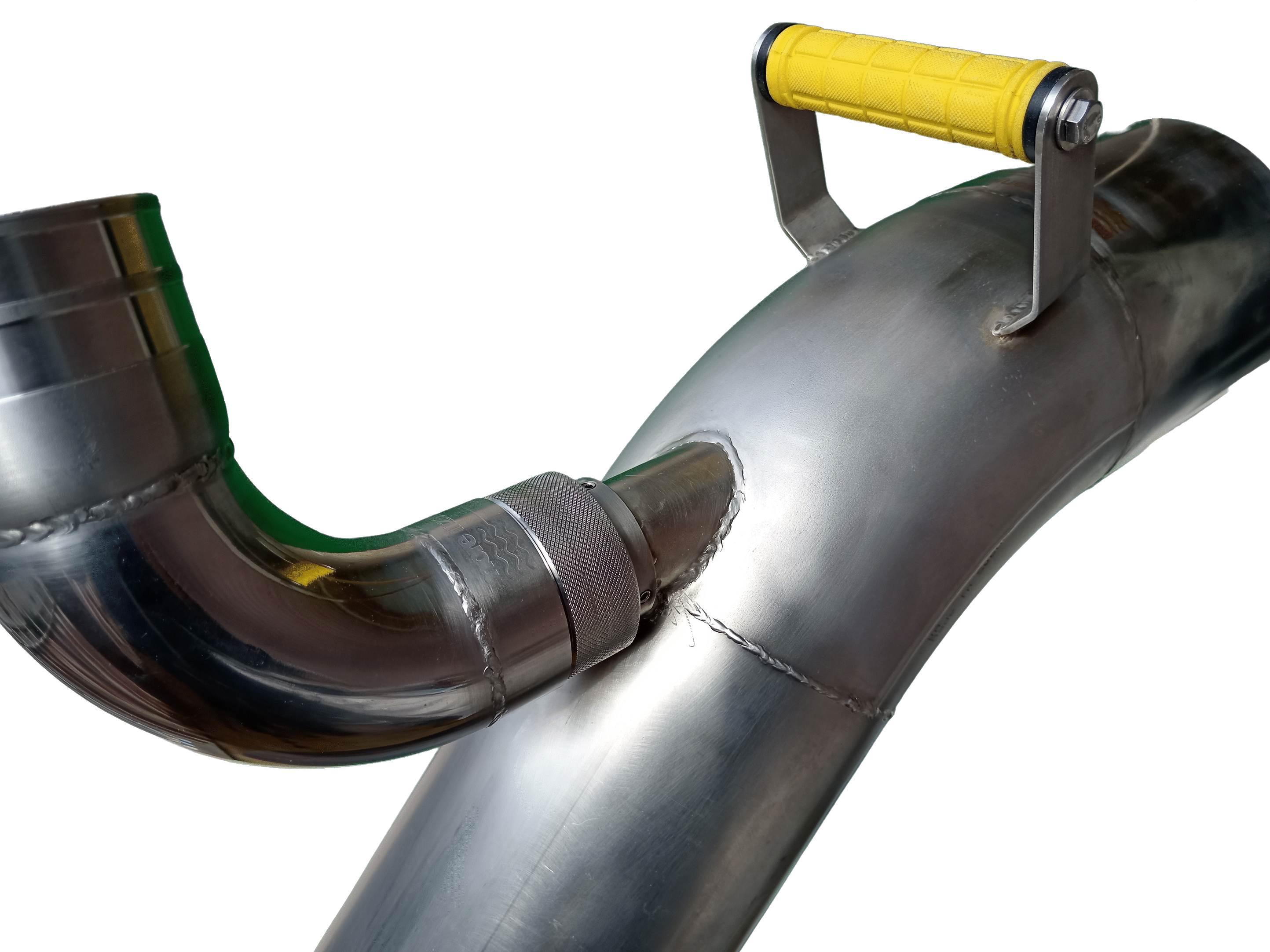

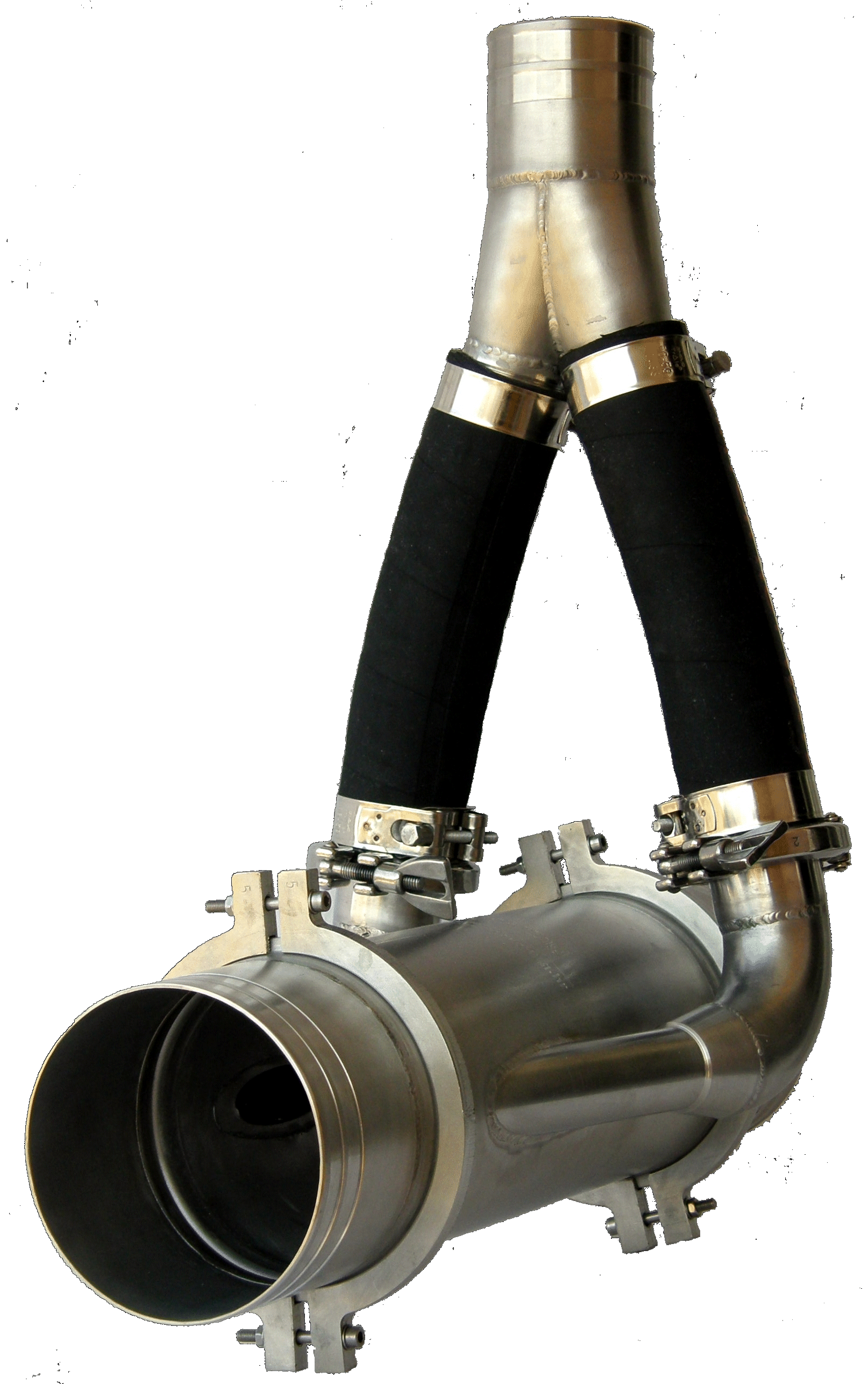

Waterjet
WJ
Heavy-duty waterjet, significantly increase dredging speed.
Interchangeable nozzles enable:
-
A wide range of water pumps to be used.
-
Pressure/flow adjustment for jetting in different sediments.
-
Adjustable jetting pattern

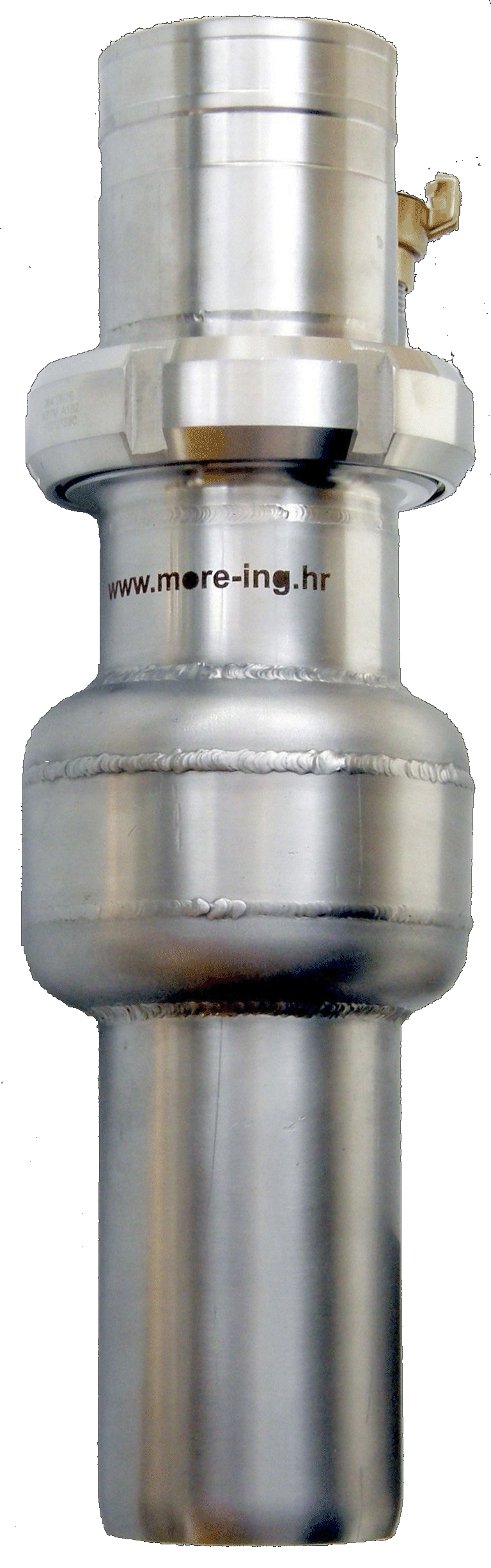

LP waterjet
Waterjet add on
Diver operated waterjet
Heavy-duty, high capacity waterjet.
Suitable for quick fluidization and blowing off large amounts of different sediments.
Powerful enough to push of 50+ kg (110+ lb) stones (when used with 40+ hp water pumps)
Comes with:
-
four sets of interchangeable nozzles to set adequate pressure/flow required for jetting in different sediments using different water pumps.
-
annular air injection add on - optional
-
performance chart for quick nozzle selection.
Significantly increase dredging speed in all
sediment types.
Interchangeable nozzles enable:
-
A wide range of water pumps to be used.
-
Pressure/flow adjustment for jetting in different sediments.
-
Adjustable jetting pattern
For more details download
